CL-U3M 外置采集卡

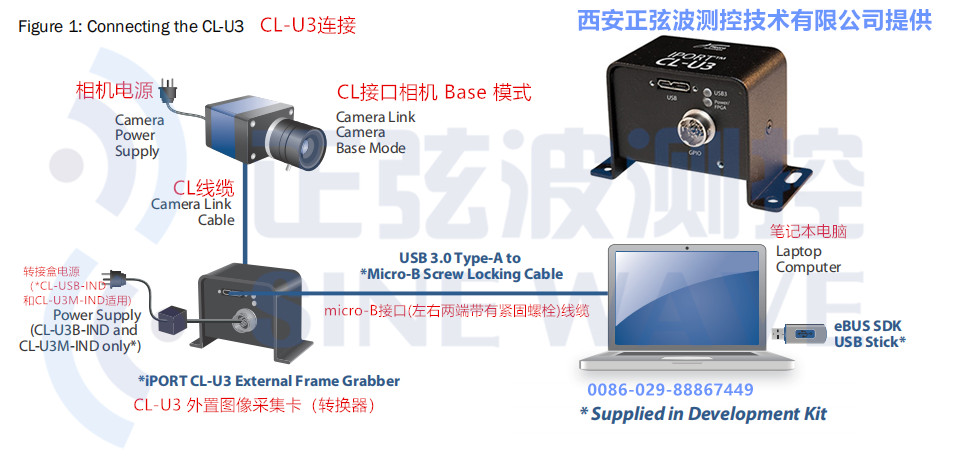

Video Formats Tap Support ? Base mode: 1 and 2 taps ? Medium mode: 1,2, and 4 taps Tap Geometry ? 1X_1Y, 1X, 1X2_1Y, 1X2, 1X4_1Y, 1X4 Video Modes ? Mono, BayerGR, BayerRG, BayerGB, BayerBG, RGB, BGR, Sparse Color Filter pattern Pixel Depth ? 8, 10, 12, 14, 16 bits, 24-bit RGB Connectors Video ? SDR-26 (Mini CL) for Camera Link USB ? 10-pin USB 3.0 micro-B Receptacle with locking screw connectors GPIO ? 12-pin circular connector Power In ? Power over USB cable ? GPIO Connector (CL-U3 industrial models only) Power Out (CL-U3 industrial models only) ? PoCL ? SDR-26 Connector Features Pixel Clock ? 20 MHz to 85 MHz Frame Buffer ? 120 MB USB 3.0-Based ? Connection to low-cost, easy-to-use equipment ? USB3 Vision 1.0 compliant Programmable Logic Controller ? Advanced image capture control ? Integrated with GPIO GPIO ? 4 TTL/LVCMOS inputs ? 3 TTL/LVCMOS outputs GPIO (CL-U3 industrial models only) ? 2 LVDS/RS-422/HVTTL/±24V/±30V differential or single-ended inputs ? 2 TTL/LVCMOS inputs ? 3 TTL/LVCMOS outputs
