IPX 3/4 試驗花灑頭- VEROCH
VEROCH IPX 3/4 試驗花灑頭是為大小型產品進行測試而設計的。當需要一個便攜式測試儀器是，這是一個很棒的選擇。
VEROCH IPX 3/4 試驗花灑頭是一個替代擺管淋雨試驗機進行防水等級試驗的裝置。VEROCH IPX 3/4試驗花灑頭是用來測試不適合擺管淋雨試驗機測試的產品。IEC測試包含IPX3和IPX4的灑水和濺水防護試驗。VEROCH IPX 3/4試驗花灑頭是一個手持式的驗證噴水和濺水防護的裝置。水壓可以通過裝置上的流量控制閥進行調節已得到想要的流速。
水壓可以在花灑頭一個很方便的位置上的水壓表上看到。花灑頭的噴嘴滿足IEC60529的標準要求。遮擋鋁板可以活動方便進行沒有遮擋干擾的測試。VEROCH IPX 3/4試驗花灑頭滿足IEC60529，IEC60598-1，IEC60335-1，IEC60745-1，GB4208，GB7000.1等行業標準的要求。
產品特色
- 依據相關標準制作而成
- 活動屏幕保護罩
- 包含壓力表
- 數字流量表(按要求)
- 采用高品質原材料嚴格依照產品尺寸要求
- 緊湊的手提包裝箱
- 完整綜合的用戶手冊
- 如有需要可提供美國本土認證實驗室開具的檢測報告
參數
- 重量 : 1.45 Kg.
- 尺寸:? ? ? ? ? ? - 寬: 120mm.? ? ? ? ? ? - 長: 315mm
依據標準: IEC 60529, IEC 60598-1, IEC 60335-1, IEC 60745-1, GB 4208, GB 7000.1
Spray Shower Tester IPX 3/4 - VEROCH

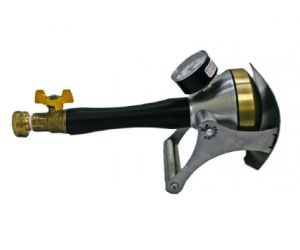

The VEROCH Spray Shower Tester VRI IPX 3/4 is designed to perform tests in large and small scale products. It is a great option when a portable tester is necessary.
The VEROCH Spray Shower Tester VRI IPX 3/4 is an alternative to the Oscillating Tube for establishing the degree of protection against ingress water. The VEROCH Spray Shower Tester VRI IPX 3/4is intended for use on specimens that will not fit within the diameter of the Tube Tester. The primary IEC tests include IPX3 and IPX4 protection against water spraying and splashing water. The VEROCH Spray Shower Tester VRI IPX 3/4 is a hand-held test device to verify protection against spraying and splashing water. The water pressure can be adjusted using the flow control knob on the device to give the required flow rate.
The pressure can be seen on the gauge which is convenient positioned by the Spray Shower Tester VRI IPX 3/4. The spray pattern of the nozzle is made to the specifications of IE60529. The removable shield feature make it easy to test without the interference of the shield .The VEROCH Spray Shower Tester VRI IPX 3/4 meets the testing needs of industry standards such as IEC 60529, IEC 60598-1, IEC 60335-1, IEC 60745-1, GB 4208, GB 7000.1
FEATURES
- Instrument manufactured according to the relevant standards
- Moving screen protector
- Pressure gauge (included)
- Digital Flow meter (upon request)
- Produced with high quality material and correct dimensions
- Supplied in a compact carrying case
- Comprehensive user manual
- Calibration Report available issued by accredited LAB located in US territory (upon request)
SPECIFICATION
- Weight: 1,45 Kg.
- Dimensions:? ? ? ? ? ? - Width: 120mm.? ? ? ? ? ? - Body Length: 315mm
Reference: IEC 60529, IEC 60598-1, IEC 60335-1, IEC 60745-1, GB 4208, GB 7000.1
