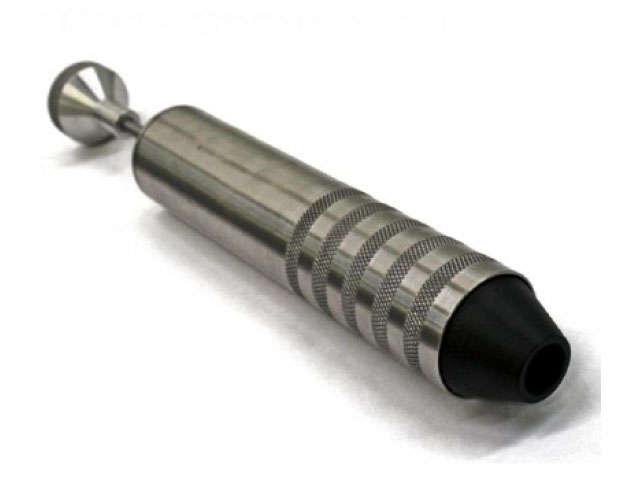

單檔彈簧沖擊錘 – VEROCH
VEROCH單檔彈簧沖擊錘是為產品耐久進行沖擊試驗設計而成。VEROCH單檔彈簧沖擊錘可以滿足行業標準如IEC 60065, 60335, 60598, 60601, 61010等其他標準的要求。沖擊錘是用來模擬對電子產品和電氣產品的機械沖擊。工廠將沖擊錘的沖擊能量設定到一個固定的值，沖擊能量從0.2 - 1 Nm(J). 購買時親注明所需的沖擊能量。若只需要單一沖擊力時VEROCH單檔彈簧沖擊錘是一個經濟的選擇，若沖擊試驗力需要調節時請選用萬用彈簧沖擊錘。
壓縮彈簧加速將沖擊組件推出撞擊測試樣品。產品測試時壓下錐形桿的末端彈簧從一個鎖定位置釋放。此產品符合IEC 60068-2-75標準要求。
沖擊能量： 0.20; 0.35; 0.50; 0.70; 1.0 Nm (Joule)
產品特色
- 依據相關標準制作而成
- 單檔或多檔產品都有
- 高質量原材料，尺寸規格正確
- 緊湊的手提箱包裝
- 完整的用戶手冊
- 在美國本土認可的實驗室出具產品檢測報告
參數
整體長度 217mm ± 2mm
直徑 50mm ± 0,5mm
沖擊頭硬度 100 Rockwell
沖擊頭材質 聚酰胺
沖擊頭半徑 10 mm
沖擊能量 0,14J – 1J. (工廠設定)
參照標準 IEC 60068-2-75Reference: IEC 60068-2-75
總量 1,25 Kg. ± 0,03 Kg
釋放桿重量 0,06 Kg. ± 0,001 Kg
沖擊元件重量 0,25 Kg. ± 0,01 Kg
Single energy impact spring hammer - VEROCH
The VEROCH Impact Spring Hammer - Single Energy is designed to perform impact tests for product durability. The VEROCH Impact Spring Hammer - Single Energy meets the testing needs of industry standards such as IEC 60065, 60335, 60598, 60601, 61010 among others. The hammer simulates mechanical impact to electronic products and electrical appliances. The impact hammer is set at the factory to one specific energy level. The energy range available is between 0.20 Nm to 1 Nm (Joule). The energy should be specified at the time of ordering. The VEROCH Impact Spring Hammer - Single Energy is an economical solution when you only need one energy level, if you need to adjust the energy you should consider the UNIVERSAL version.
A compressed spring accelerates a striking element to hit the sample undergoing test. The spring is released from a locking mechanism by pressing the cone-shaped end of the impact hammer against the product under test. This product meets requirements of IEC 60068-2-75.
VERSIONS
0.20; 0.35; 0.50; 0.70; 1.0 Nm (Joule)
FEATURES
- Instrument manufactured according to the relevant standards
- Single and Universal models available
- Produced with high quality material and correct dimensions
- Supplied in a compact carrying case
- Comprehensive user manual
- Calibration Report issued by accredited LAB located in US territory
Specs
Body Length 217mm ± 2mm
Diameter 50mm ± 0,5mm
Hammer head Hardness 100 Rockwell
Hammer head material Polyamide
Hammer head radius 10 mm
Impact energy 0,14J – 1J. (fixed at the factory)
Reference IEC 60068-2-75Reference: IEC 60068-2-75
Weight of body 1,25 Kg. ± 0,03 Kg
Weight of release cone 0,06 Kg. ± 0,001 Kg
Weight of striking element 0,25 Kg. ± 0,01 Kg
